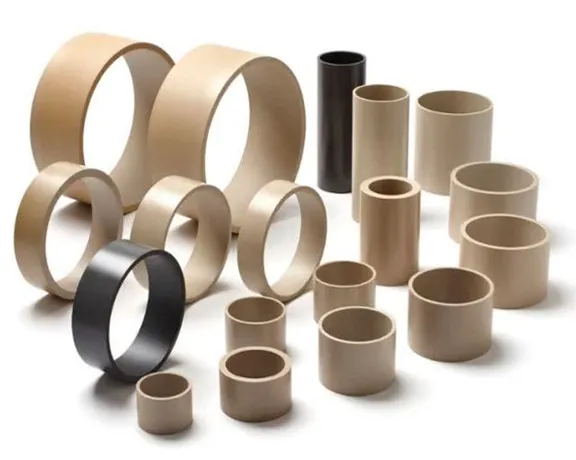

PEEK Compounds
High-Performance Polymers

PEEK Compounds

Polyether ether ketone (PEEK) compounds with excellent strength, wear resistance, and high-temperature stability.

Key Features

High StrengthRadiation ResistanceCreep ResistanceHydrolysis Resistance

Technical Specifications

Temperature -50°C to +250°C
Tensile Strength 90-100 MPa
Chemical Resistance Excellent

Product Variants

Virgin PEEK

Unfilled PEEK with maximum purity and high strength.

Specifications

Tensile Strength:90-100 MPa
Melting Point:343°C
Get Quote

25% Glass Filled PEEK

Glass fiber reinforcement for added rigidity and dimensional stability.

Specifications

Glass Fiber:25%
Tensile Strength:110 MPa
Flexural Modulus:6 GPa
Get Quote

25% Carbon Filled PEEK

Carbon fiber reinforcement for improved wear resistance and thermal conductivity.

Specifications

Carbon Fiber:25%
Tensile Strength:120 MPa
Thermal Conductivity:1.0 W/m·K
Get Quote

70% PEEK + 30% PTFE

Blend of PEEK with PTFE for reduced friction and better wear.

Specifications

Blend:70% PEEK / 30% PTFE
Friction Coefficient:Low
Wear Resistance:High
Get Quote

80% PEEK + 20% PTFE

Optimized blend for balancing wear resistance and low friction.

Specifications

Blend:80% PEEK / 20% PTFE
Tensile Strength:95 MPa
Get Quote

80% PTFE + 20% PEEK

PTFE-rich blend for maximum lubrication with improved strength from PEEK.

Specifications

Blend:80% PTFE / 20% PEEK
Friction Coefficient:Very Low
Get Quote

Applications

Aerospace

Ideal for aerospace applications requiring high-performance polymer solutions.

Medical Implants

Ideal for medical implants applications requiring high-performance polymer solutions.

Oil & Gas

Ideal for oil & gas applications requiring high-performance polymer solutions.

Semiconductors

Ideal for semiconductors applications requiring high-performance polymer solutions.
